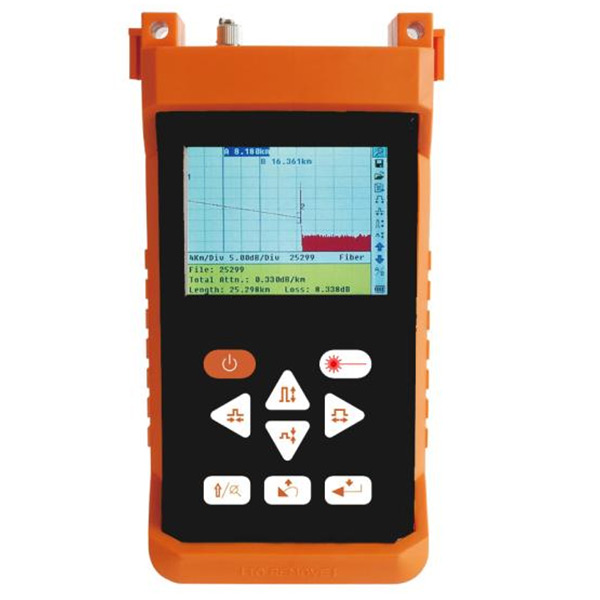

● The cost effective and the fully functional OTDR
● Graphic display of test results
● Perfect user interface, handheld & lightweight (1kg)
● Hotkeys: Easy to use, push-and-test
● 1000 test records storage
● Bellcore file format (.sor)
● PC software for batch data processing
● USB data interface, driver-free
● Multiple languages: EN/DE/IT/FR/ES/PT/RU/KR/VN/CN etc.
● 10 hours continuous operation with battery
● Dust-shock proof (2m drop test)
● TraceManager software can display, analyze and edit trace files, generate and print comprehensive test and analysis reports in various forms.
● Trace viewing, events analysis
● Batch editing and flexible printing
● Trace viewing, events analysis
● Multi traces comparison
● Batch editing and flexible printing
● Bidirectional testing (Optional)
● CSV/ASCII report formats
| Model | palmOTDR-S120A | palmOTDR-S120B |
| Wavelength (±20nm) | 1310/1550 | |
| Dynamic Range | 24/24dB | 28/28dB |
| Rang of Use | Singlemode fiber | |
| Dead Zone | EDZ:5m | EDZ: 2.5m; ADZ: 8m |
| Connector | FC/PC (Interchangeable SC, ST) | |
| Distance Measure Accuracy | ±(1m+ 5×10-5×Distance + sampling space) | |
| Attenuation Detect Accuracy | ±0.05 dB/ dB | |
| Reflection Detect Accuracy | ±4 dB | |
| Data Storage | 1000 records | |
| Connectivity | USB | |
| Power Supply | Rechargeable Battery/ AC Adapter | |
| Battery Life | 10 hours continuous operation/ 20 hours standby | |
| Operating Temperature | -10℃ ~50℃ | |
| Storage Temperature | -20℃ ~70℃ | |
| Relative Humidity | 0 to 95% (non-condensing) | |
| Weight | 1kg (2.2 lbs) | |
| Dimensions (H x W x T) | 220×110×70mm (8.7×4.3×2.7 inch) | |
Standard Package Includes:
Instrument, Rechargeable battery, AC adapter, TraceManager software CD, USB data transfer cable, Warranty card, CE certificate, Certificate of calibration
